Maximize Output: Understanding the Automatic Continuous EPS Block Cutting Line with Oscillating Hot Wire Technology

Expanded Polystyrene (EPS) has become indispensable in industries ranging from construction insulation to protective packaging. If you’re running an EPS foam manufacturing business, you understand that efficiency and precision are paramount. The automatic continual eps cutting line represents a significant leap forward in processing EPS blocks. This article delves deep into this essential piece of equipment, explaining how it works, its advantages, why it’s a crucial investment for businesses like yours, and what to consider when choosing one. Reading this will give you the insights needed to optimize your production and stay competitive.

What Exactly is an Automatic Continuous EPS Cutting Line?

At its core, an automatic continuous EPS cutting line is a sophisticated system designed to cut large EPS blocks into sheets or specific shapes with minimal human intervention. Unlike standalone cutting machine units where blocks might need manual loading and repositioning for different cuts, a continuous eps cutting line automates the entire process. Large EPS blocks, often coming directly from a Mould Adjustable EPS Block Molding Machine, are fed into the line, typically via conveyors.

The system then automatically handles the block, moving it through various cutting stations. These stations employ hot wire technology to perform precise cuts. First, a block might pass through a horizontal cutter section to slice it into sheets of a desired thickness. Then, these sheets can proceed to a vertical cutter section to be cut into specific widths or final dimensions. The "continuous" aspect means the process flows smoothly from one step to the next without stopping, maximizing throughput. The "automatic" part signifies that sensors, PLCs (Programmable Logic Controllers), and motors manage the feeding, positioning, cutting, and sometimes even the offloading of the finished pieces. This eps cutting line is engineered for high-volume production.

As a manufacturer specializing in EPS machinery, we’ve seen firsthand how implementing an automatic eps cutting line transforms a factory floor. It moves operations from stop-and-start processing to a fluid, efficient workflow. This system is more than just a cutting machine; it’s an integrated solution designed to handle expanded polystyrene blocks systematically and efficiently. The core advantage lies in its ability to automate repetitive tasks, ensuring consistency and speed.

Why Should Your EPS Foam Business Invest in Continuous Cutting Technology?

Investing in new equipment is always a significant decision, especially for a company owner like Mark Thompson, who balances quality with cost-effectiveness. So, why consider a continuous eps cutting line? The primary driver is efficiency. Manual or semi-automatic cutting methods involve significant labor, potential for human error, and downtime between cuts or block handling. An automatic system operates continuously, drastically increasing output capacity. This means you can process more EPS foam in less time, fulfilling larger orders faster and potentially reducing lead times for your customers.

Furthermore, consistency is key in producing high-quality EPS foam products. An automatic eps cutting line ensures that every cut is performed with the same precision and speed, according to pre-set parameters. This reduces material waste caused by inaccurate cuts and improves the overall quality of your finished goods, whether it’s insulation panels or custom shape packaging. The reduction in manual handling also enhances workplace safety by minimizing operator interaction with the cutting wire mechanisms.

For businesses aiming to scale up, an automatic continuous eps cutting line is almost essential. It allows you to increase production volume without proportionally increasing labor costs. The initial investment can be recouped through higher efficiency, reduced waste, lower labor requirements, and the ability to take on more demanding contracts. We understand the competitive landscape, especially sourcing from China, and this type of advanced machinery provides a distinct operational advantage, helping you produce cost-effective, high-quality polystyrene products. Think about the efficiency increase – it’s often substantial.

How Does the Hot Wire Cutting Machine Work for EPS Blocks?

The magic behind accurately cutting expanded polystyrene lies in the hot wire technology. An eps cutting line utilizes thin, resistant wires, typically made of nichrome or a similar alloy, heated to a specific temperature via electrical current. When the heated wire comes into contact with the EPS foam, it doesn’t mechanically saw through it; instead, it melts the polystyrene locally along the cut path. This results in a remarkably smooth and precise cut surface with minimal dust or debris compared to sawing methods.

Within an automatic continuous eps cutting line, multiple hot wires are precisely tensioned and positioned within cutting frames. For horizontal cuts, wires are stretched across the path of the moving EPS block. As the block advances (or the wire frame moves), the hot wire slices through it horizontally, creating sheets. For vertical cuts, wires are oriented top-to-bottom, and the sheets move past them (or the wire frame moves across the sheets) to achieve the desired width. Advanced systems often feature an oscillate function, where the cutting wire vibrates rapidly along its length. This vibration cutting action helps to clear melted material, further improving the cut quality and speed, especially on denser EPS foam.

The temperature of the wire and the cutting speed are critical parameters controlled by the system’s PLC. These need to be carefully calibrated based on the density of the EPS block and the desired cut quality. Too hot or too slow, and the cut can be too wide or melted; too cool or too fast, and the wire might drag or break. Modern eps cutting line systems often feature sophisticated control systems that allow the operator to easily set and adjust these parameters for optimal results, ensuring consistent foam cutting. These hot wire cutters are the heart of the foam cutting process.

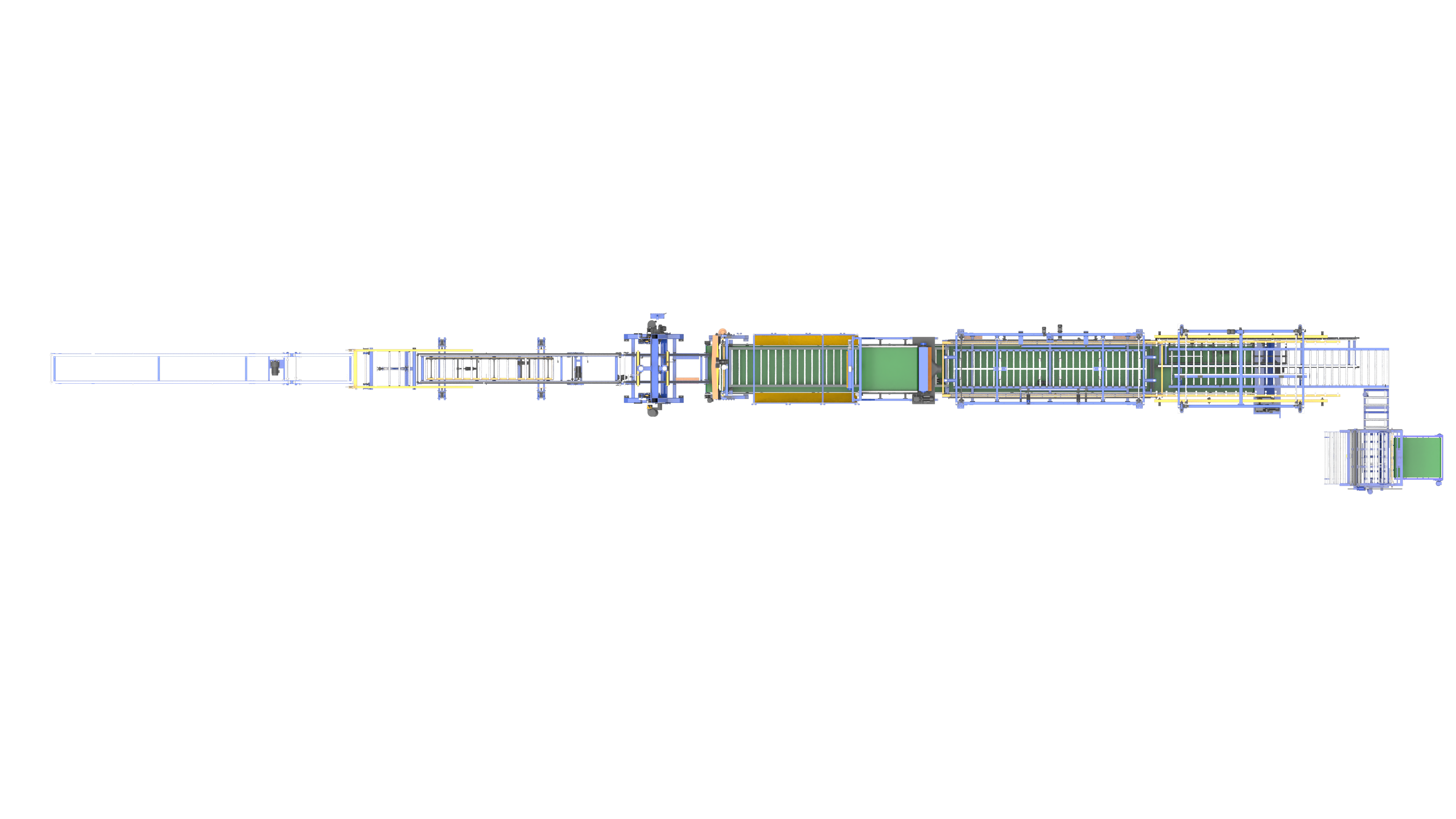

What are the Key Components of a High-Performance EPS Cutting Line?

A high-performance automatic continuous eps cutting line is more than just hot wires. It’s an assembly of carefully integrated components working in concert. Understanding these parts helps in evaluating different systems:

1. Infeed Conveyor/System: This device receives the large EPS blocks (often automatically from storage or the block molding machine) and transports them smoothly into the first cutting station. Belt or roller conveyors are common. Some systems include tilting mechanisms to orient the block correctly.
2. Horizontal Cutting Station: This section houses the horizontally oriented hot wires. It includes the wire frames, tensioning mechanisms, and the power supply/control for heating the wires. The frame might move up and down, or the conveyor height adjusts, to determine sheet thickness. The precision of the wire setting here is crucial.
3. Vertical Cutting Station: After horizontal slicing, this station performs vertical cuts. Similar to the horizontal station, it has vertically tensioned hot wires. It cuts the sheets into narrower strips or final product widths. Again, precise wire setting is vital.
4. Cross-Cutting Station (Optional): Some lines include a station to cut the strips or sheets to a specific length using another set of hot wires or sometimes a blade cutter.
5. Waste Removal System: Efficient eps cutting lines incorporate systems to collect trim waste (the edges cut off the block). This often involves conveyors or vacuum systems routing the scrap eps material towards a EPS Recycling Machine EPS Crusher + De-duster+ Dust compactor for processing, keeping the working environment cleaner.
6. Outfeed and Stacking System (Optional): After cutting, finished pieces are transported out. Advanced lines might integrate automatic stacking or packing solutions like an EPS Stacking Machine to prepare products for shipping with minimal manual handling.
7. Control System (PLC & HMI): The brain of the operation. A PLC controls all motors, speeds, wire temperatures, and sequences. A Human-Machine Interface (HMI), usually a touchscreen panel, allows the operator to set parameters, monitor the process, and troubleshoot issues. A user-friendly interface is crucial for efficient operation.

Each component must be robustly built and precisely engineered to ensure the reliability and efficiency that users like Mark Thompson expect. As a machine manufacturer, we focus heavily on the quality and integration of these parts.

Can You Achieve High Precision Cutting with an Automatic EPS Cutting Machine?

Absolutely. High precision is one of the primary advantages of a well-designed automatic eps cutting machine or line. Several factors contribute to this:

• Stable Framework: The entire eps cutting line structure must be rigid and vibration-free to ensure the cutting wires maintain their exact position relative to the EPS block. Any flex or wobble can lead to inaccurate cuts.
• Precise Wire Positioning: Modern systems utilize accurate mechanisms, often involving servo motors or stepper motors with lead screws, for positioning the hot wire frames. This allows for setting the desired cut dimensions (thickness, width) with very tight tolerances, often within a millimeter or less.
• Automatic Wire Setting Systems: Advanced lines may feature an automatic wire setting system. This allows the operator to input the desired dimensions via the HMI, and the machine automatically adjusts the wire positions, saving significant setup time and reducing the chance of errors compared to manual wire setting. This helps improve the cutting accuracy dramatically.
• Consistent Tensioning: Maintaining consistent tension on each cutting wire is critical. Slack wires can bow or drift during the cut, leading to uneven surfaces or dimensional inaccuracies. Automatic tensioning systems help maintain optimal wire tension throughout the operation.
• Controlled Movement: The speed at which the EPS block moves through the cutting stations, and the speed of any moving wire frames, must be precisely controlled and synchronized. Smooth, consistent motion prevents jerky movements that could affect cut quality.
• Oscillation Technology: As mentioned earlier, oscillating wires can enhance cut smoothness and precision, especially for intricate shapes or thicker materials.

When these elements are engineered correctly, an automatic eps cutting line delivers highly precise and repeatable cuts, ensuring that the final EPS foam products meet exact specifications required for applications like construction insulation, appliance packing, or custom shape molding inserts. This level of precision is difficult, if not impossible, to achieve consistently with manual methods.

How Does Automation Drastically Improve the EPS Block Cutting Process?

Automation is the cornerstone of the efficiency and reliability offered by a continuous eps cutting line. Let’s break down how it improves the process:

1. Reduced Labor: The most obvious benefit. Manual cutting requires operators to load blocks, measure, guide the cut, reposition for subsequent cuts, and unload finished pieces. An automatic line handles most, if not all, of these tasks automatically, significantly reducing the number of operators needed per line. This frees up personnel for other tasks and lowers labor costs.
2. Increased Throughput: Automation eliminates the pauses inherent in manual operations (setup time, handling time, operator breaks). The continuous flow allows the cutting machine to process EPS blocks much faster, leading to a substantial increase in overall production volume.
3. Consistent Quality: Human operators can have variations in how they perform cuts, leading to inconsistencies. Automation executes each cut identically based on programmed parameters, ensuring uniform product quality and dimensions, batch after batch. This minimizes rejects and waste.
4. Enhanced Safety: Automating the movement of large EPS blocks and the cutting process itself reduces the need for operators to be in close proximity to moving parts and hot wires, significantly improving workplace safety.
5. Optimized Material Usage: Precise, automated cuts minimize trim waste. Integrated waste removal systems can immediately direct scrap for recycling, improving material yield and sustainability.
6. Simplified Operation: While the underlying technology is complex, modern HMIs make operating the line relatively straightforward. Once parameters are set, the operator primarily monitors the process, making adjustments as needed. This reduces the need for highly specialized skills for basic operation.

By automating the eps block cutting process, manufacturers can achieve higher efficiency, better quality control, improved safety, and ultimately, a more competitive operation. The goal is to automate tasks that are repetitive, require high precision, or pose safety risks, allowing human workers to focus on oversight and quality control.

Choosing Wisely: What to Look for in an EPS Cutting Line Manufacturer?

Selecting the right manufacturer for your eps cutting line is as crucial as choosing the machine itself, especially when sourcing internationally, perhaps from China. For someone like Mark Thompson, who values quality and reliability alongside price, here are key factors to consider:

• Experience and Specialization: Look for a manufacturer with a proven track record specifically in EPS and EPP foam machinery. Companies that specialize understand the nuances of working with expanded polystyrene and design machines accordingly. YouLi has been in this industry for years, focusing solely on this type of equipment.
• Technical Specifications and Build Quality: Scrutinize the machine specs. What materials are used? Are components sourced from reputable suppliers (e.g., Siemens, Schneider for electrical parts)? Is the frame robust? Ask for details about motors, control systems, and wire technology.
• Customization Options: Can the manufacturer tailor the eps cutting line to your specific needs regarding block size, cutting dimensions, speed requirements, or integration with existing equipment? A good partner works with you to provide the best solution.
• After-Sales Service and Support: This is critical. What kind of installation support, operator training, and technical assistance does the manufacturer offer? Is remote diagnostics available? How quickly can they respond if issues arise? Language barriers can be a pain point, so ensure clear communication channels exist. At YouLi, we prioritize comprehensive support for our international clients.
• Spare Parts Availability: Machines require maintenance and occasional part replacement. Ensure the manufacturer has a clear process for supplying spare parts promptly and at reasonable costs. Downstream availability of parts like the cutting wire is essential.
• Certifications and Compliance: Does the machinery meet international safety standards (e.g., CE marking for Europe)? This ensures the equipment is built safely and may be required for import or insurance purposes.
• References and Case Studies: Ask for references from other customers, particularly in your region (USA, North America, Europe, Australia). Hearing about their experiences can provide valuable insights into the manufacturer’s reliability and performance.
• Transparency and Communication: Evaluate the communication process during the sales phase. Are they responsive, knowledgeable, and transparent about capabilities and limitations? This often reflects how they’ll handle support later on. We strive for clear, direct communication with clients like Mark.

Price is always a factor, but it shouldn’t be the only factor. A cheaper machine with poor reliability or inadequate support can end up costing far more in the long run due to downtime and lost production.

Manual vs. Automatic EPS Cutting: A Clear Look at Efficiency Gains

Let’s quantify the difference. While exact figures depend on the specific EPS block size, density, and required cut complexity, the efficiency gains from switching from manual to an automatic continuous eps cutting line are typically dramatic.

Consider a scenario: Manually cutting a standard EPS block into multiple sheets might take several minutes per block, including handling. An automatic eps cutting line might process the same block in a fraction of that time, perhaps under a minute, and do so continuously. This translates to potentially multiplying your cutting capacity several times over. The efficiency increase isn’t just marginal; it’s often transformative, allowing businesses to meet growing demand and improve profitability significantly. The cutting speed is drastically improved, directly impacting the production rate.

Keeping it Running: What Maintenance Does an Automatic EPS Cutting Line Require?

Like any industrial machinery, an automatic continuous eps cutting line requires regular maintenance to ensure optimal performance, longevity, and safety. While robustly built, neglecting maintenance can lead to decreased precision, unexpected downtime, and potentially costly repairs. Here’s a general overview:

• Daily Checks:
  • Inspect cutting wires for wear, damage, or residue buildup. Replace worn wires promptly.
  • Check wire tension.
  • Ensure safety guards and sensors are functioning correctly.
  • Clean accessible areas of dust and debris.
• Weekly Maintenance:
  • Thoroughly clean the machine, including conveyor belts/rollers and waste collection areas.
  • Lubricate moving parts (bearings, guides) as specified by the manufacturer.
  • Inspect drive belts or chains for proper tension and wear.
  • Check electrical connections and cables for any signs of damage.
• Monthly/Quarterly Maintenance:
  • More in-depth inspection of mechanical components (motors, gearboxes).
  • Verify calibration of positioning systems if required.
  • Check the control system (PLC) for any error logs.
  • Inspect the hot wire heating system and controls.
• Annual Maintenance:
  • Consider a more comprehensive service, potentially by a qualified technician or the manufacturer’s support team. This might involve checking alignment, replacing wear parts proactively, and software updates if applicable.

Having a clear maintenance schedule and readily available spare parts is crucial. We, as a machine manufacturer, provide detailed maintenance guidelines and support our clients in establishing effective routines. Addressing Mark Thompson’s potential pain point about spare parts, reliable manufacturers ensure a smooth supply chain for consumables like cutting wire and critical replacement components. Proper maintenance is the key to maximizing the return on your investment in an eps cutting line.

Beyond Basic Cuts: Exploring the Capabilities of CNC EPS Cutting Machines in a Line

While many automatic continuous eps cutting lines focus on producing sheets and rectangular blocks, the technology can be integrated with more advanced cutting capabilities, namely CNC (Computer Numerical Control). A CNC EPS Cutting Machine uses computer control to guide the hot wire along complex paths, allowing for the creation of intricate 2D and sometimes 3D shapes.

Integrating CNC capabilities into a cutting line allows for:

• Shape Cutting: Producing custom shapes for packaging (protective packaging for electronics, appliances), architectural elements, signage, or props directly from EPS blocks or thick sheets within the automated flow.
• Versatility: A single line could potentially switch between producing standard sheets and complex shapes, increasing the range of products you can offer.
• Automation of Complex Cuts: Tasks that would be extremely difficult or time-consuming manually can be automated with high precision. The CNC eps cutting machine component uses software (like CAD/CAM) to translate designs into precise cutting paths.

This advance adds another layer of sophistication and requires more complex programming and potentially different wire configurations (e.g., contour cutters). However, for businesses serving markets that require custom EPS foam shapes, integrating CNC cutting into the automatic line represents a powerful capability. It moves beyond simple block cutting into the realm of precise foam fabrication. It’s important to discuss these needs with the manufacturer to determine if a standard line or one incorporating CNC is the right solution.

The Bigger Picture: How the EPS Cutting Line Integrates into Your Full EPS Production Flow

An automatic continuous eps cutting line doesn’t operate in isolation. It’s a vital link in the overall EPS production chain. Understanding its place helps optimize the entire workflow:

1. Raw Material Handling: EPS beads are expanded in an EPS Pre-expander Machine.
2. Aging: Expanded beads are stored in large silos (like an EPS Silo) for a period to stabilize.
3. Block Molding: Aged beads are fed into an EPS Block Moulding Machine (Vertical, Horizontal, or Adjustable) where steam fuses them into large blocks.
4. Block Curing/Storage: Freshly molded EPS blocks need time to cure and cool, often stored temporarily, potentially managed by an Automatic EPS Block Conveyor.
5. Cutting: Cured blocks are transported (often automatically) to the automatic continuous eps cutting line to be cut into the desired size and shape. This is the stage we’ve focused on.
6. Waste Recycling: Trim and offcuts from the cutting line are collected and processed by an EPS Recycling Machine, often feeding the recycled material back into the production process.
7. Finishing/Assembly (If needed): Some applications might require gluing or assembling cut pieces.
8. Packing: Finished products are bundled, wrapped (perhaps using an EPS Packing Machine), and prepared for shipment.

A smooth transition between these stages is crucial for overall plant efficiency. The automatic continuous eps cutting line plays a pivotal role by taking the large, cumbersome blocks from the molding stage and efficiently transforming them into manageable, precisely sized products ready for the next step or final packing. Ensuring the capacity of the eps cutting line matches the output of the block molding machines and the requirements of the downstream processes is key to a balanced and efficient production flow in the EPS industry, especially for construction and packaging sectors using styrofoam materials.

Key Takeaways for Your EPS Business:

• Efficiency is King: An automatic continuous EPS cutting line drastically increases throughput and reduces labor costs compared to manual methods.
• Precision Matters: Hot wire technology combined with robust automation delivers consistent, high-precision cuts, improving product quality and reducing waste.
• Automation Reduces Burden: Automating the cutting process enhances safety, ensures consistency, and simplifies operation.
• Components Work Together: A high-quality eps cutting line relies on well-integrated components: conveyors, cutting stations (horizontal/vertical), controls, and potentially waste removal/stacking.
• Choose Your Partner Carefully: Select a manufacturer with expertise in EPS machinery, strong support, spare parts availability, and a focus on quality, like YouLi Machinery.
• Maintenance is Non-Negotiable: Regular maintenance ensures the longevity, reliability, and precision of your investment.
• Integration is Key: Understand how the eps cutting line fits within your entire production flow to maximize overall plant efficiency. Consider advanced options like CNC EPS cutting machine integration if complex shapes are needed.

Investing in an automatic continual eps cutting line is a strategic move to enhance your EPS foam manufacturing capabilities, boost efficiency, and maintain a competitive edge in the demanding industry.
