Fast & Tight EPS Wrapping Machine for Shape Products

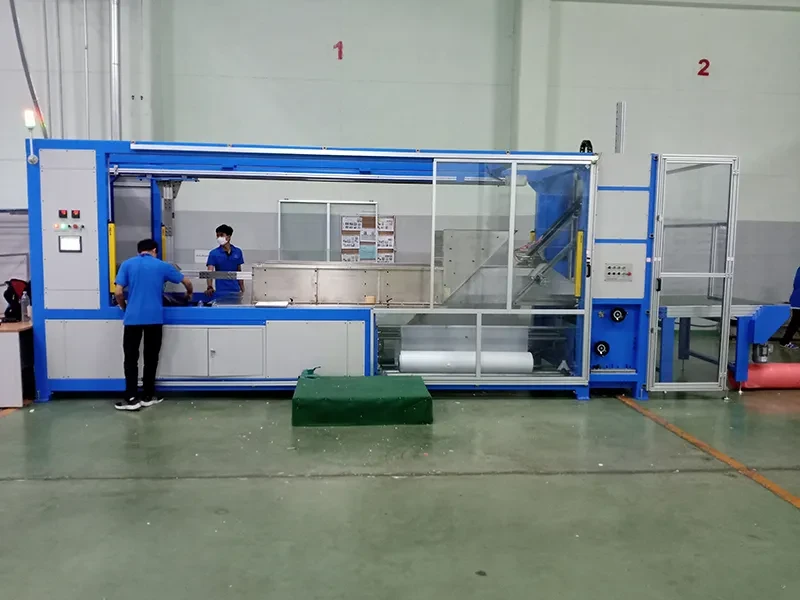

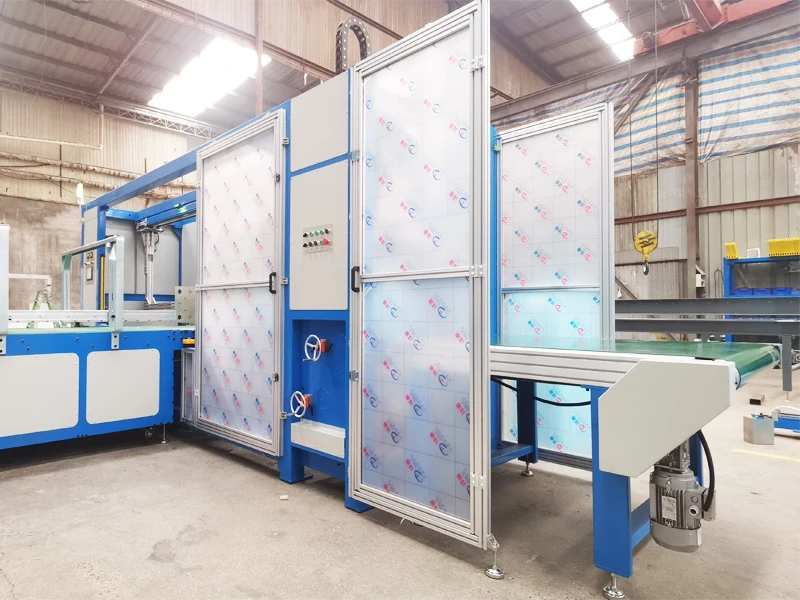

EPS Wrapping Machine for Shape Poducts
The EPS/EPP shape products are conveyed into the machine and form the separate products into a bundle. After that the EPS/EPP bundle is pushed into the EPS Wrapping Machine and takes along a certain amount of film. During the process the film is stretched and sealed together. The machine can increase the packing efficiency greatly. The packing capacity is up to 1000 packages/shift.
EPS Wrapping Machine Specification
• Model: SPLM-CA20/W800H600
• Suitable for shape product length: 2000mm
• Suitable for shape product width: 600~800mm adjustable
• Suitable for shape product height: 300~600mm adjustable
• Speed: 2~3 pack/min @ 1200*800*600mm
• Film material: PE
• Thickness: 0.02mm

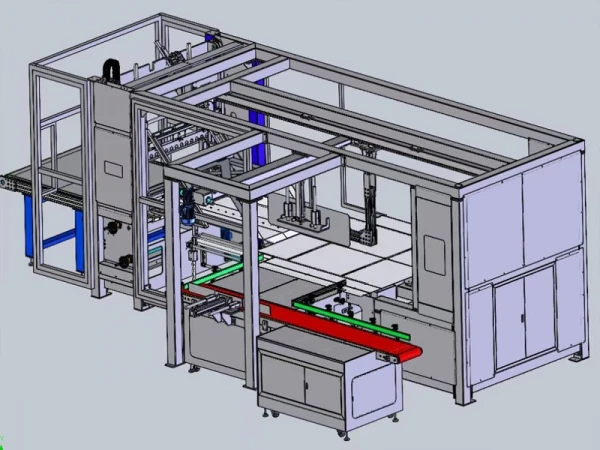

EPS Wrapping Machine Features
• CE certificate
• High output and save labor cost
• Machine operation is simple and reliable
• Wrapping the sheets on 6 sides by pushing them into stretched foil
• Positioning and fastening of foil and package
• Forming package by welding and cutting the foil.
EPS Wrapping Machine Main parts
• Touch screen + PLC: Siemens/Germany
• Electronics: Schneider/France
• Motor: ZIK/China
• Roller: Damon/China
• Pneumatic: Airtec/China
• Photo sensor: Autonics/Korea
