Fast & Tight EPS Packing Machine for block sheets
EPS Packing Machine for block sheets

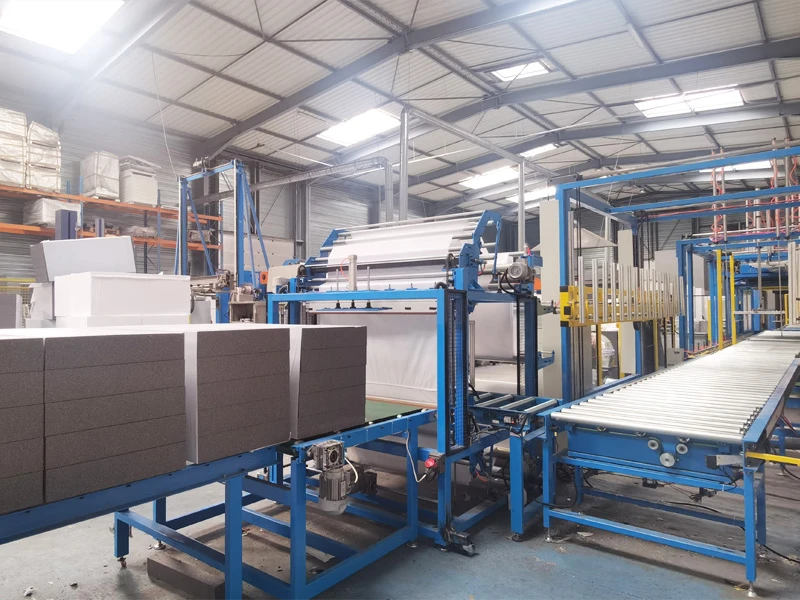

The EPS sheets bundle is conveyed into the EPS Packing Machine by conveyor, after that the sheets bundle is pushed and takes along a certain amount of film. During the process, the film is stretched and sealed together by hot sealer. The Machine helps to increase the EPS block packing speed.

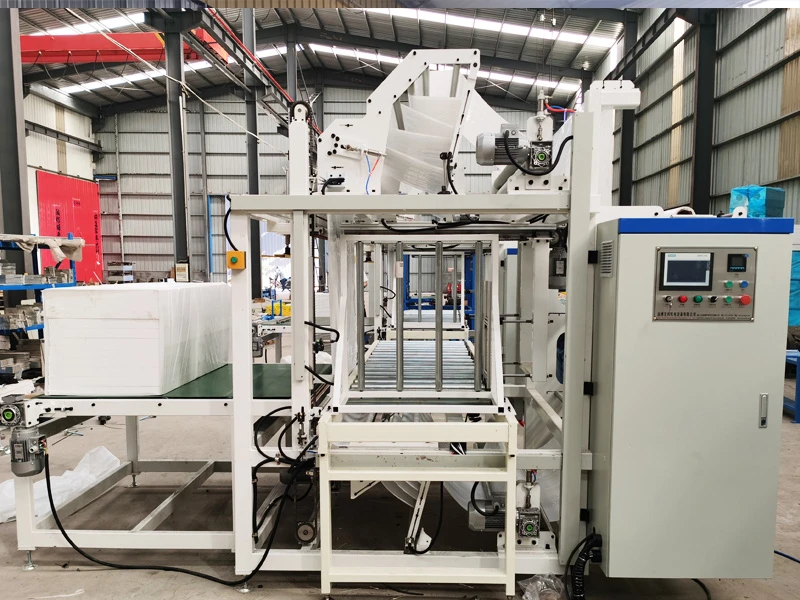

EPS Packing Machine Production Capacity
- Model: SPLB1200
- Suitable for block size: 1200*600*600mm
- Speed: 8 packs/min
- Film material: PE
- Thickness: 0.03mm

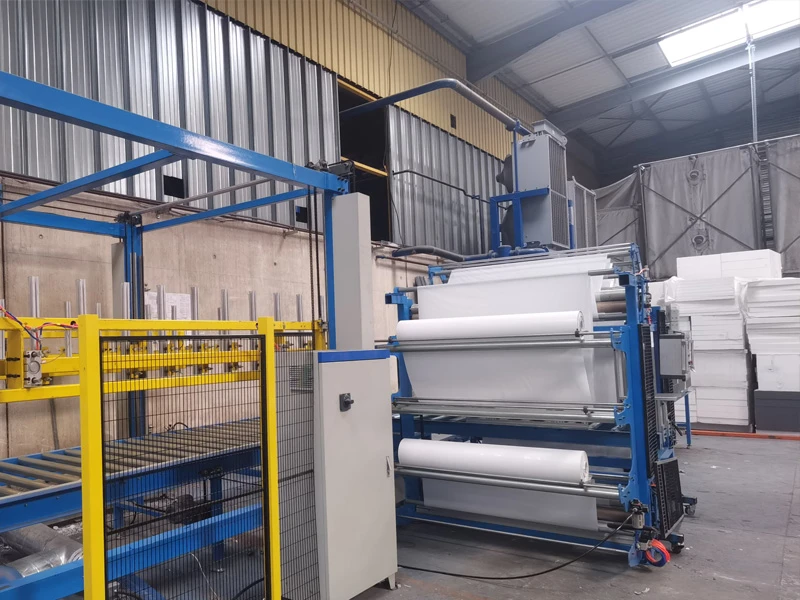

EPS Packing Machine Features
- CE certificate
- High output and save labor cost
- Machine operation is simple and reliable
- Wrapping the sheets on 4 sides by pushing them into stretched foil
- Positioning and fastening of foil and package
- Forming package by welding and cutting the foil.
- Auto Stacking unit is optional after packing.
EPS Packing Machine Main parts
- Touch screen + PLC: Siemens/Germany
- Electronics: Schneider/France
- Motor: ZIK/China
- Roller: Damon/China
- Pneumatic: Airtec/China
- Photosensor: Autonics/Korea

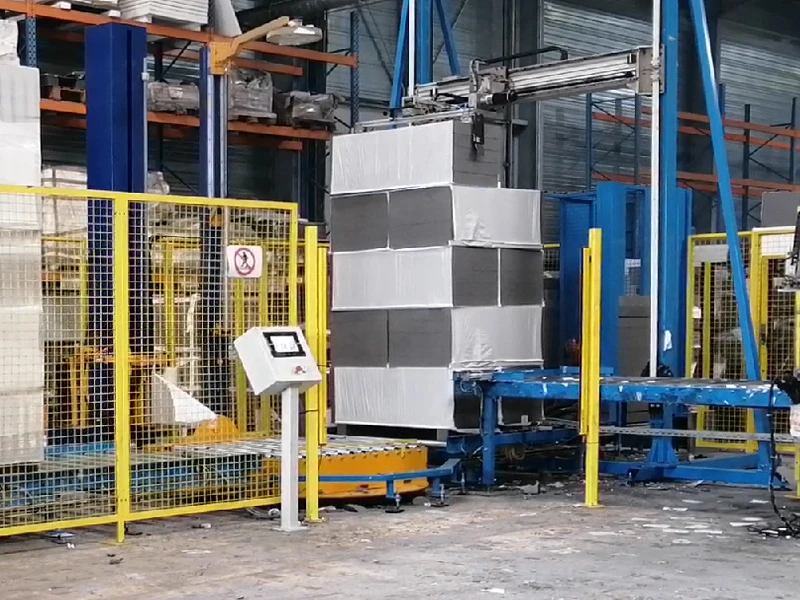

EPS Stacking Machine
Suitable for pack length: 1200*1200*3000mm
Stack Speed: 3min/stack

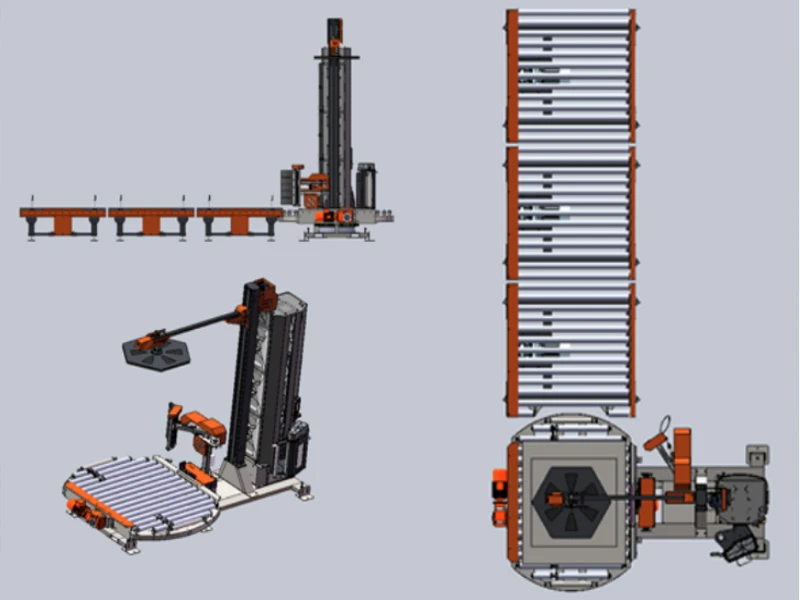

EPS Wrapping Machine
Suitable for pack length: 1200*1200*3000mm
Wrapping Speed: 3min/stack
Film width: 500mm
Film diameter: 250mm
