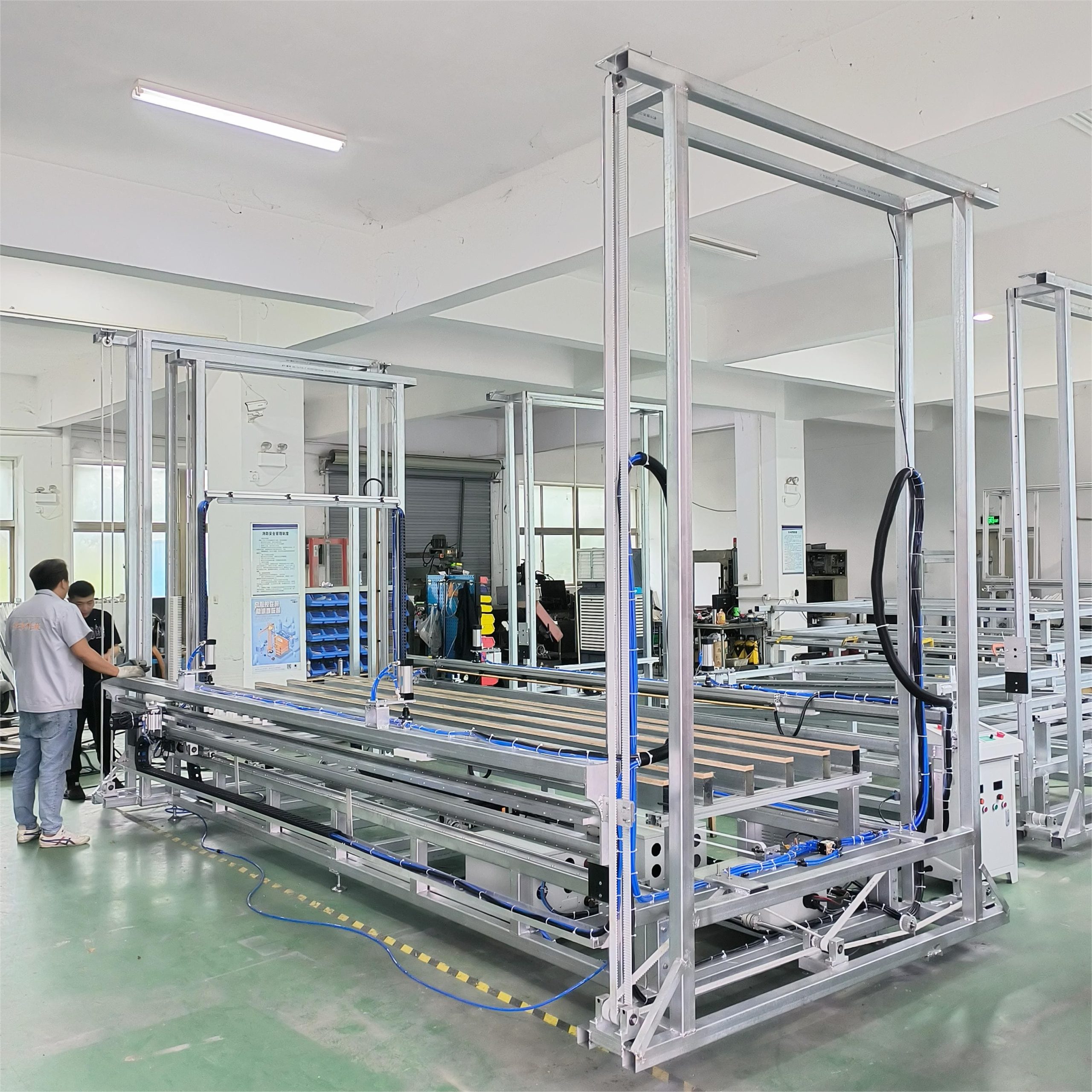

CNC EPS Cutting Machine
YouLi CNC EPS Cutting machine is used to cut EPS block into various shapes for decorations. The wires move up & down (Y-axis, yellow part), and the table moves left & right (X-axis). The operator designs the required drawings by AutoCAD, and it is easily converted and input to cutting software.
CNC EPS Cutting Machine Specification
- Cutting Platform dimension: (3000~6000) * 2400 * 1200mm
- Axis: X and Y
- Cutting speed: 0.3-0.6m/min
- Power: 11kw
- Weight:1500Kg
![CNC EPS Cutting Machine Specification CNC EPS Cutting Machine Specification](https://sc1027.searchtestsite.com/wp-content/uploads/CNC-EPS-Cutting-Machine-Specification.jpg)
CNC EPS Cutting Machine Features
– wire length / 2600mm
– wire diameter / 0.40 -0.8 mm
– 20 wires can be installed.
– 2D CNC Compatible with CAD.
– speed 0-500mm/min
– cutting speed adjustable
– voltage & current adjustable
– pause & restart is available
– temperature adjustable
![cnc-eps-cutting-machine-features-600x450_ cnc-eps-cutting-machine-features-600x450_](https://sc1027.searchtestsite.com/wp-content/uploads/cnc-eps-cutting-machine-features-600x450_-.webp)
CNC EPS Cutting Machine Features Main parts
1. Driven by Supper big Stepping Motors, with long life
![cnc-eps-cutting-machine-step-motor-600x450_ cnc-eps-cutting-machine-step-motor-600x450_](https://sc1027.searchtestsite.com/wp-content/uploads/cnc-eps-cutting-machine-step-motor-600x450_-.webp)
2. Diameter 32mm ball screw track used in X axis
![cnc-eps-cutting-machine-ball-screw-track-600x450_ cnc-eps-cutting-machine-ball-screw-track-600x450_](https://sc1027.searchtestsite.com/wp-content/uploads/cnc-eps-cutting-machine-ball-screw-track-600x450_-.webp)
3. Diameter 30mm TBR Track used for X & Y movement
![cnc-eps-cutting-machine-tbr-track-600x450_ cnc-eps-cutting-machine-tbr-track-600x450_](https://sc1027.searchtestsite.com/wp-content/uploads/cnc-eps-cutting-machine-tbr-track-600x450_-1-1.webp)
4. Big capacity transformer: 10KVA, input 220V, output 70V, up to 20 wires
![cnc-eps-cutting-machine-big-transformer-600x450_ cnc-eps-cutting-machine-big-transformer-600x450_](https://sc1027.searchtestsite.com/wp-content/uploads/cnc-eps-cutting-machine-big-transformer-600x450_-1-1.webp)
5. Table PC with English Software
![cnc-eps-cutting-machine-computer-600x450_ cnc-eps-cutting-machine-computer-600x450_](https://sc1027.searchtestsite.com/wp-content/uploads/cnc-eps-cutting-machine-computer-600x450_-1-1.webp)
Cutting Sample
![EPS-CNC-Cutting-Machine-2_ EPS-CNC-Cutting-Machine-2_](https://sc1027.searchtestsite.com/wp-content/uploads/EPS-CNC-Cutting-Machine-2_-1-1.webp)
